FAUN


    FAUN under the Kirchhoff Group has retained their traditional rear loader lineup, and brought some new additions to the family. Models based on the Edelhoff MSTS detachable body system were produced during the early 2000s as the Toppress line. Like the Powerpress rear loader, the Frontpress front loader is another product with American ancestry, and for many years had been almost identical to the original Gar Wood FL-3000 designed by Fred Smith. In later years, the auxiliary packer panels have been replaced with a conventional packer blade, but the body still evokes the spirit of the original.

    The Sidepress series side loaders handle both residential and commercial automated collections. The current generation now incorporates curved bodies and a pendulum-type packer mechanism. Another Fred Smith design in service with FAUN is the Easypress, a "one-armed" front loader designed to service wheeled carts from the curb. The loader arm is coupled with what is essentially a full-size FL packer body with curved panel construction. A handful of these were produced in America as the ill-fated E-Z Pack Hercules AFL.

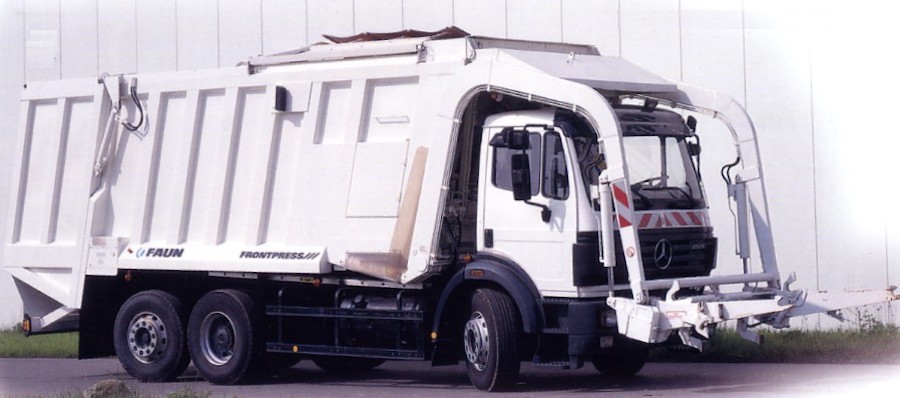

Frontpress is a modern version of the Gar Wood LP-3000

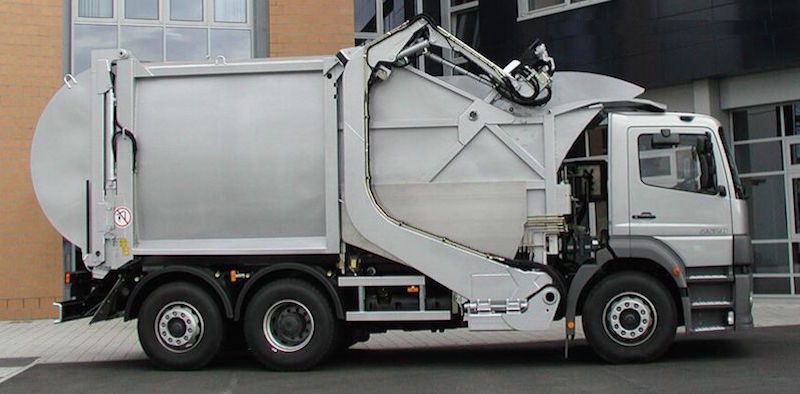

Original Frontpress models had twin auxiliary packer panels built into the main panel

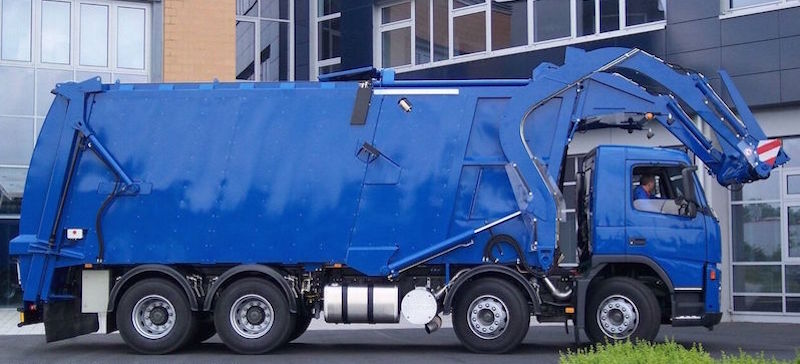

Newest versions of the Frontpress have gone to conventional packer panels



FAUN Toppress X with Hawkchange detachable body was an update of the Edelhoff MSTS

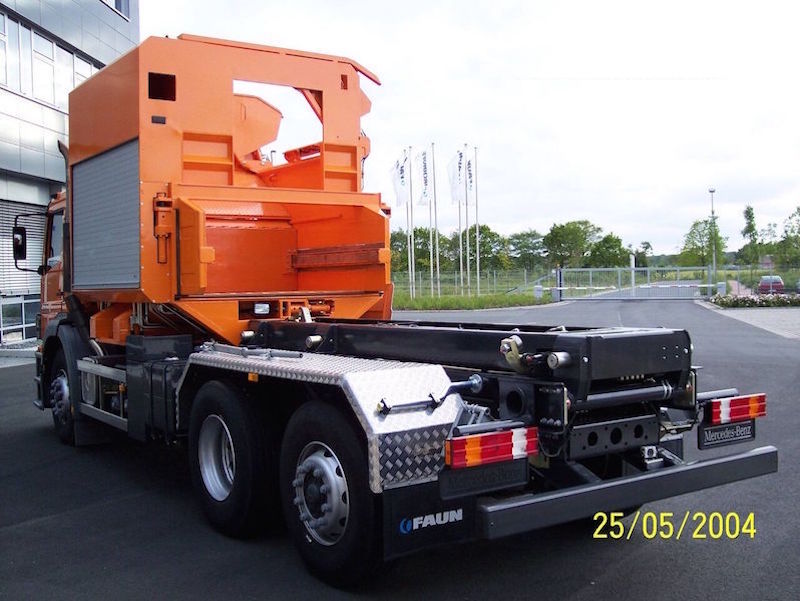

Toppress X with body detached

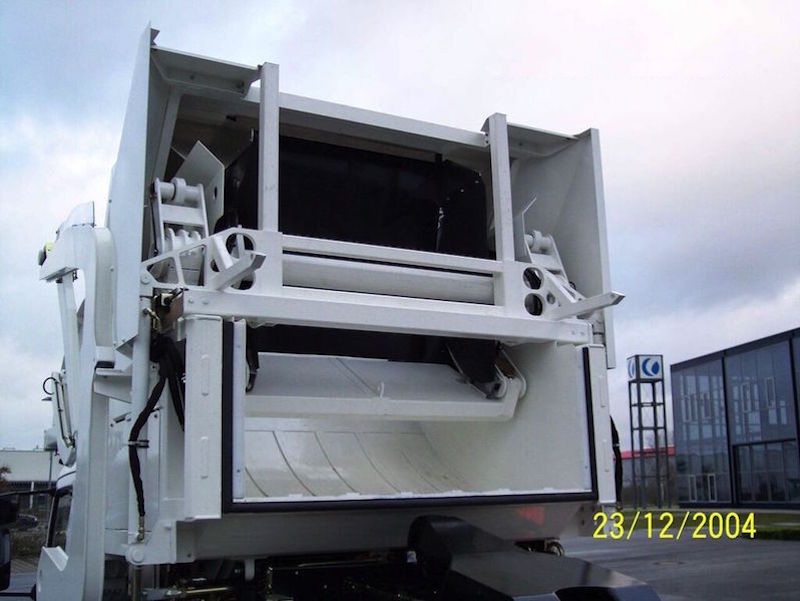

Toppress X packer, the four-cylinder swing link design developed by Edelhoff for the MSTS

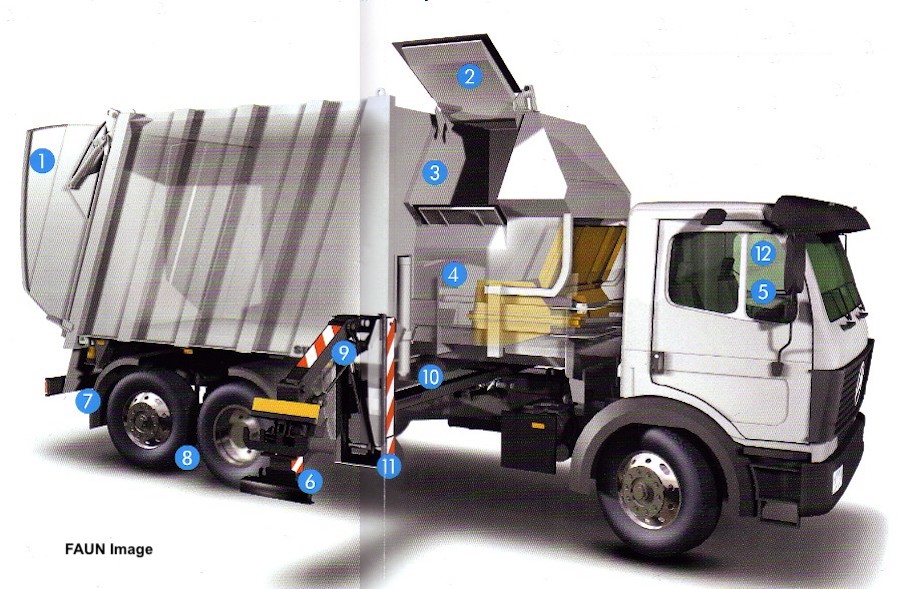

Early type FAUN Sidepress residential ASL



Sidepress originally used a push-type packer blade with follower panel

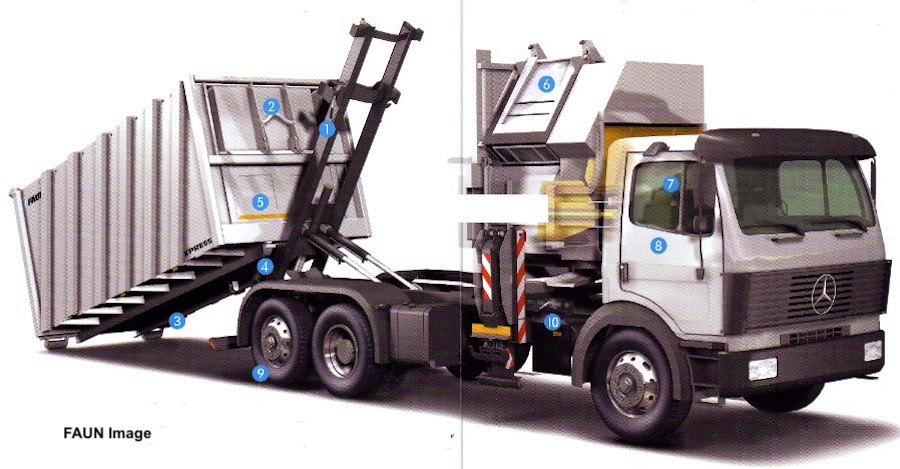

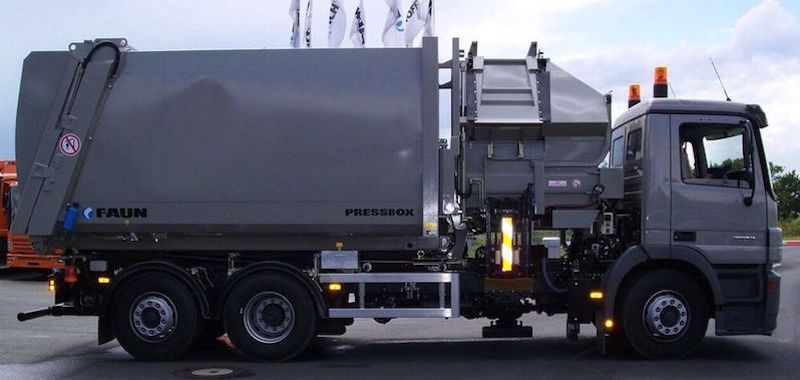

Sidepress X, with interchangeable 'Hawkchange' body system

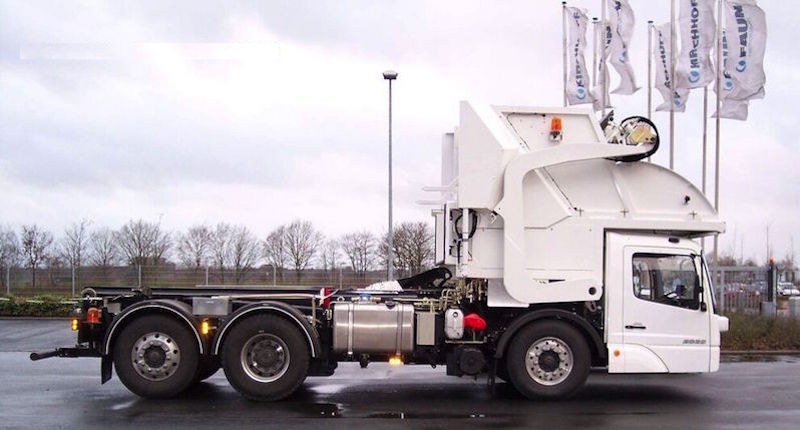

Sidepress X commercial, with body detached revealing packer mechanism



Sidepress X with later-model curved-side detachable body

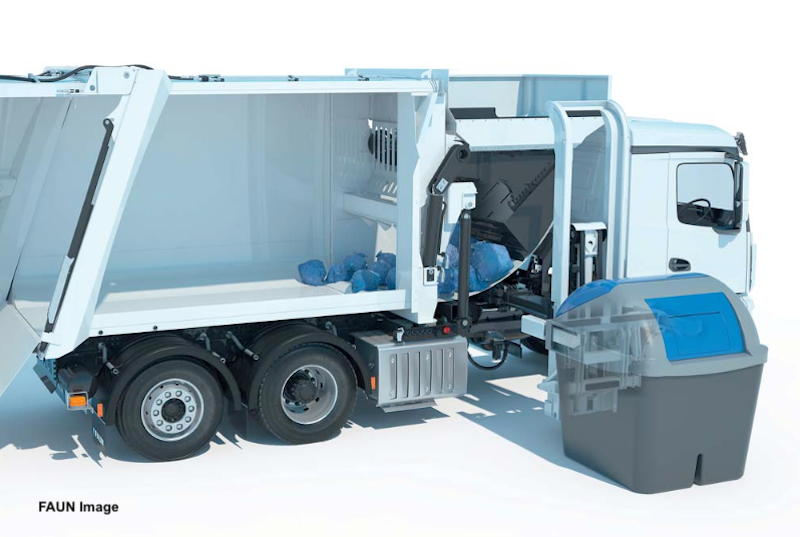

Sidepress F3000 (with new pendulum packer) picks up containers from the side using forks

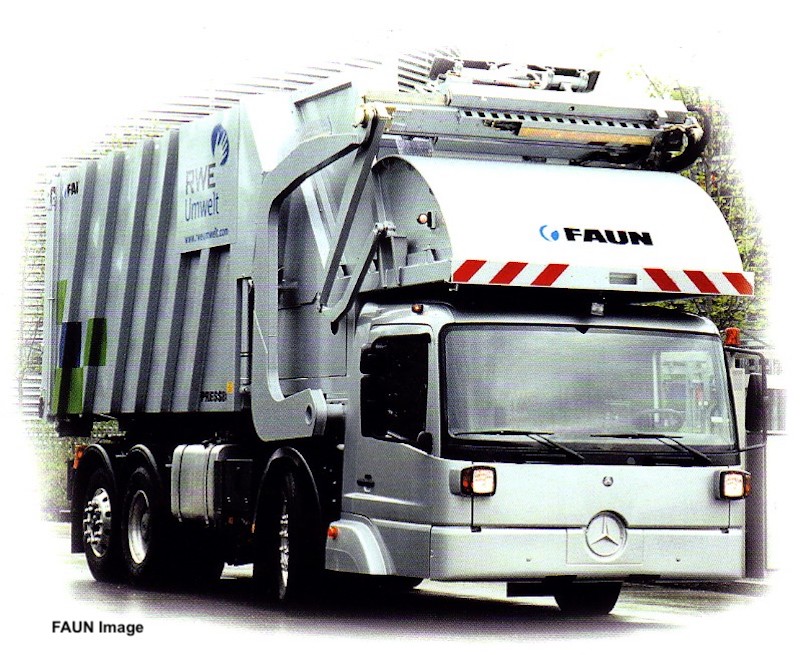

One-armed Easypress picks up from the side and loads from the top into standard front-load type packer



REFERENCES

Edelhoff page at Classic Refuse Trucks

E-Z Pack album at Classic Refuse Trucks
Chapter 13, The McClain-Clean Earth Era, Hercules Automated Front Loader

Vintage FAUN Literature in PDF at the Classic Refuse Trucks Library
