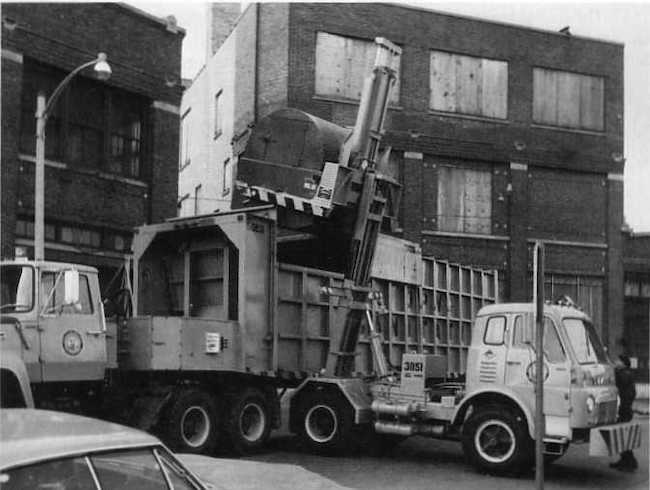

Milwaukee, Wisconsin was one city using 'mobile' transfer stations, in the form of this Pak-Mor compaction trailer being loaded by a high-lifting Dempster GRD (1975). The rectangular trailers were discontinued in 1991.

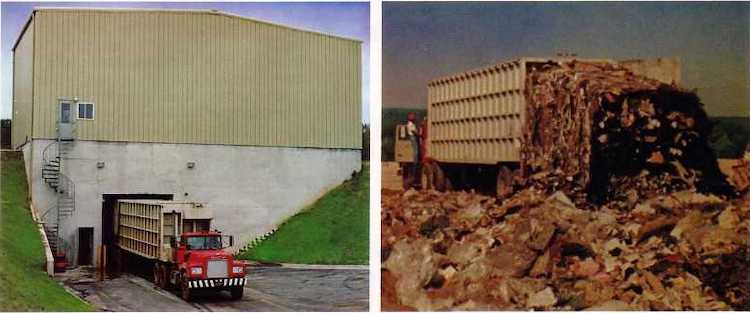

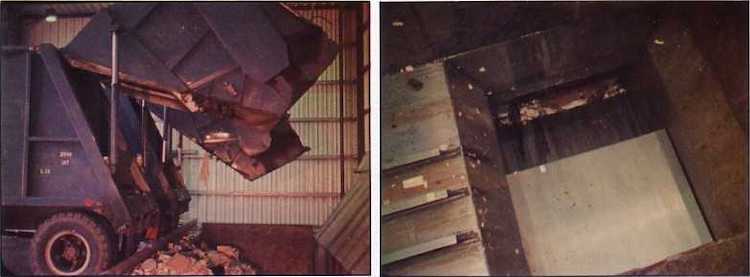

Pak-Mor also provided equipment for fixed transfer stations. RL-15 series rear loaders discharge into a Pak-Mor push-pit compactor unit.
Down below the pit, a rectangular compaction trailer hauls out a load, and disgorges a 'cube' at the dump site

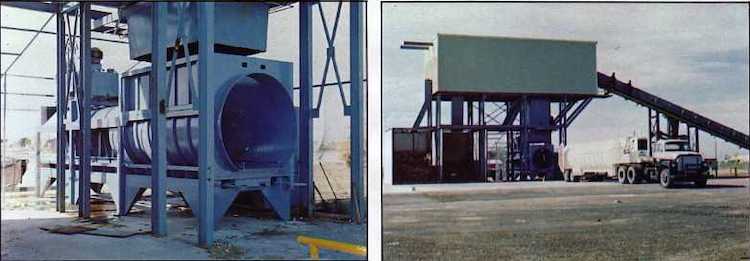

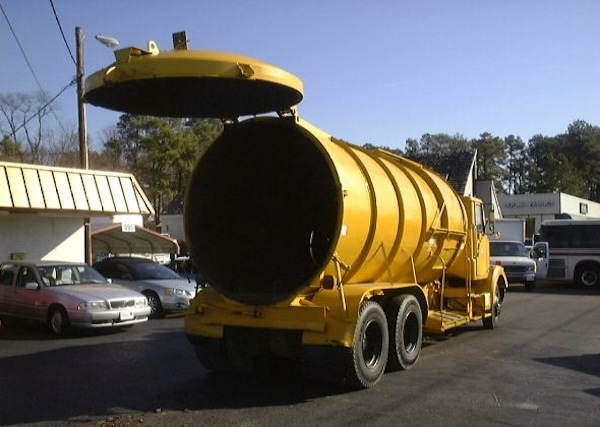

Use of Pak-Mor Lo-Boye trailers allowed for lower discharge clearances, such as in this mid-70s installation for handling shredded paper at Odessa, Texas. A special round receiver and loading ram were designed specifically to couple with the Lo-Boye units

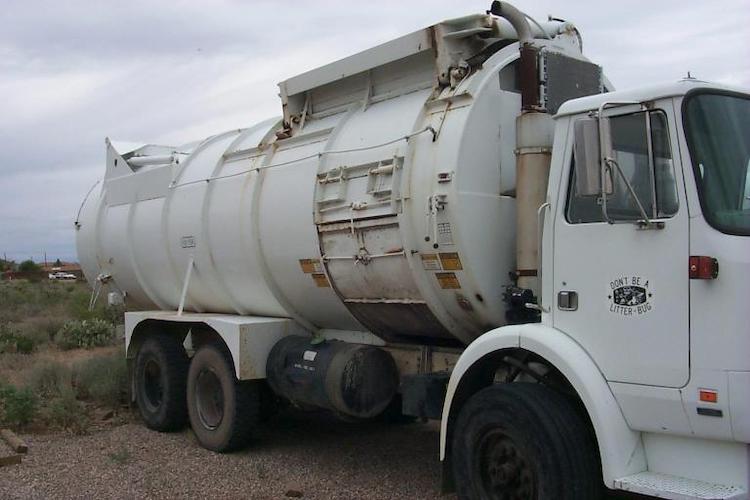

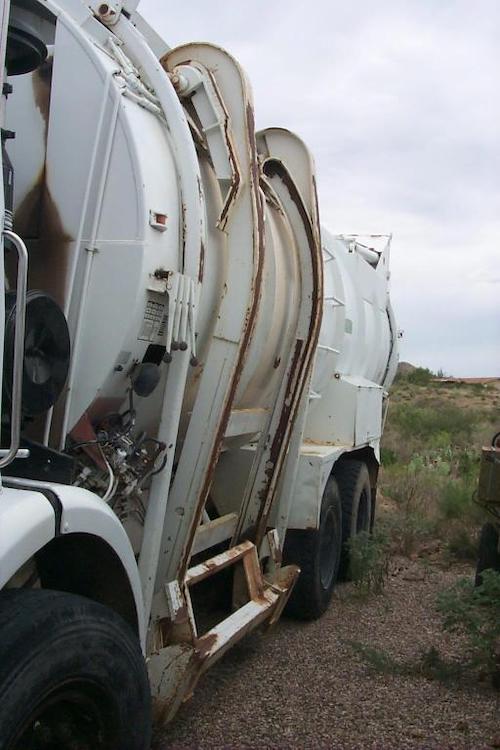

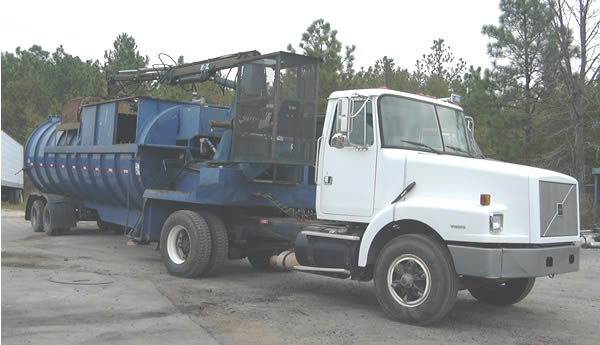

The Lo-Boye trailer remained in limited production into the 2000s. This 1998 top-loader is equipped with a grapple arm for bulk refuse or brush
Pak-Mor Handi-Lift container hoists for the H-series side loaders were phased out in favor of the all-hydraulic Link Retriever system. This 1981 version has been outfitted for 90/300 gallon residential automated collection thanks to clamp arms, a front pump and right-hand drive. A long-reach, dedicated ASL version (HR200 Retriever) would be available by the mid-80s
H-series also received new one-piece tailgates, hydraulically raised, as shown on this manual side loader used by an east coast U.S. Navy base

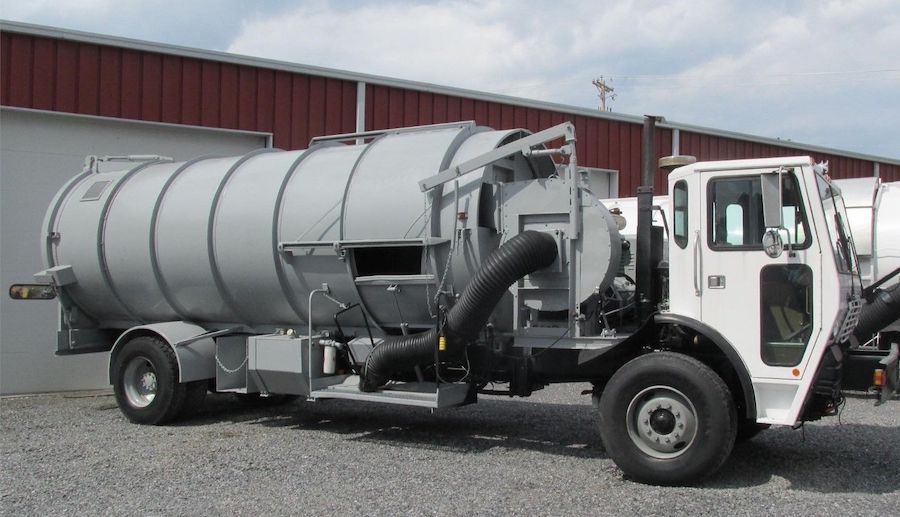

1984: Big 28-yard H-series body fitted with a leaf vacuum attachment, mounted on an STI Buzzard truck chassis. A favorite of municipalities, they made quick work of curbside leaf pickup.
With a bubble tailgate, this 1988 model HLRL Container Retriever holds 33-cubic yards. When not servicing containers, manual loading is also possible through this side door.
Detail of Link Retriever system showing container guide rails. Lift could be installed on either side of the body
Big body, small tailgate: a 1998 R130 rear loader
Big body, medium tailgate: a 1996 R230B
Big tailgate, small body: a 1985 model R320. Note how the slide cylinders on the 300-series are now located below the slide panel track, as on the 100/200 series. This change occurred around 1984.

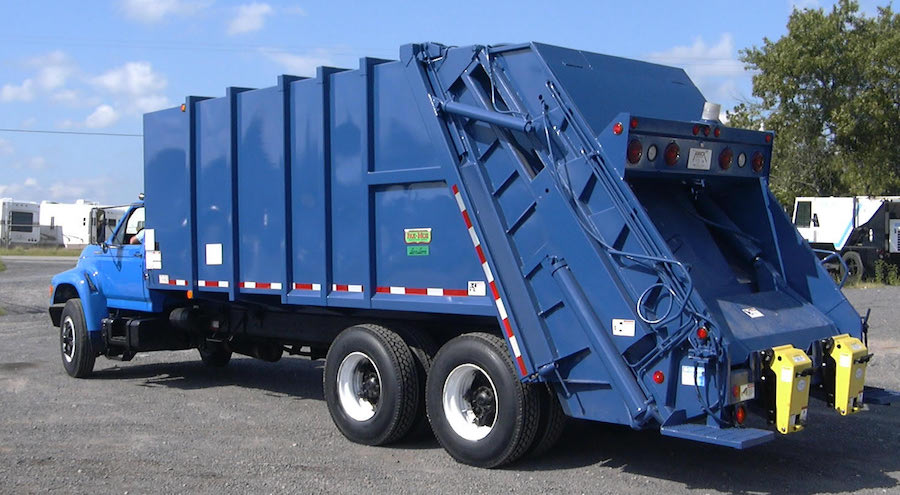

Big Tailgate, big body; 1998 R330.
Big...everything: The R334B was largest regular-production, chassis-mounted rear loader in America, at 34-cubic yards

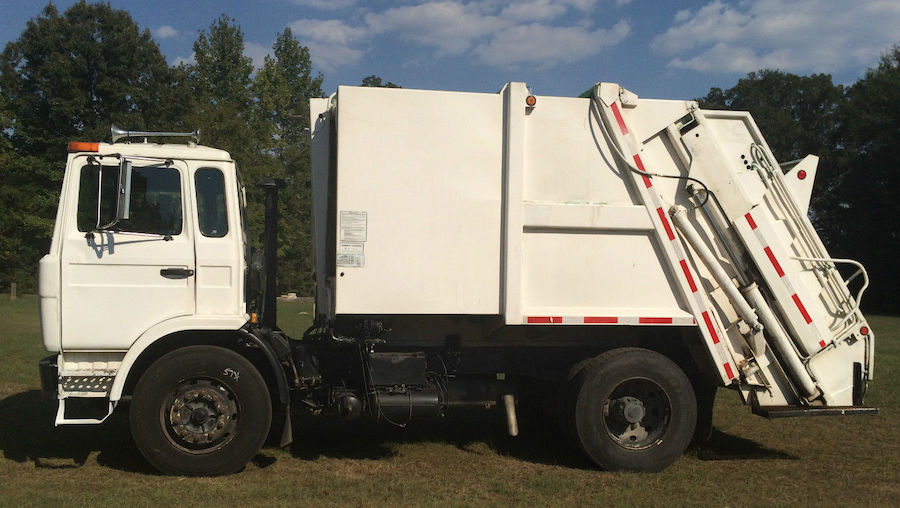

Small everything: For confined areas, this RNC111 was 8-inches lower, and 6-inches narrower than the standard 100-series body. SELECTED PATENTS
|
