G & H Manufacturing
Arlington, Texas

    With the recycling renaissance of the late 1980s, separation of materials saw a return to non-compaction, compartmented truck bodies and trailers by many haulers. In 1990, G & H brought collection of recyclables back to the compaction era with the R-90 series of rear loaders. These vertically-split bodies could be ordered with 2, 3, 4 or even 5 compartments. With one compartment used for rubbish, haulers could complete collection routes in a single pass if desired.

    Compaction in each individual tailgate was by hinged-hopper/sweep, or conventional slide/sweep packing, or a combination. The most current models now use only slide/sweep packers, and are available in 1-3 compartment configurations. Even a non-compacting model, the RR-90 was briefly offered. This used a circular body with side troughs which was periodically rotated to upend the troughs.

    The 2000 Series manual side loader was recently added, similar in construction to the old Hobbs Hyd-Pak models. The R-90 rear loader has been sold as a packaged truck by Crane Carrier, mated with their Centurion chassis and badged as a CCC. In addition to the recyclers, G & H manufactures a complete line of refuse equipment including roll-offs, trailers and container handlers.

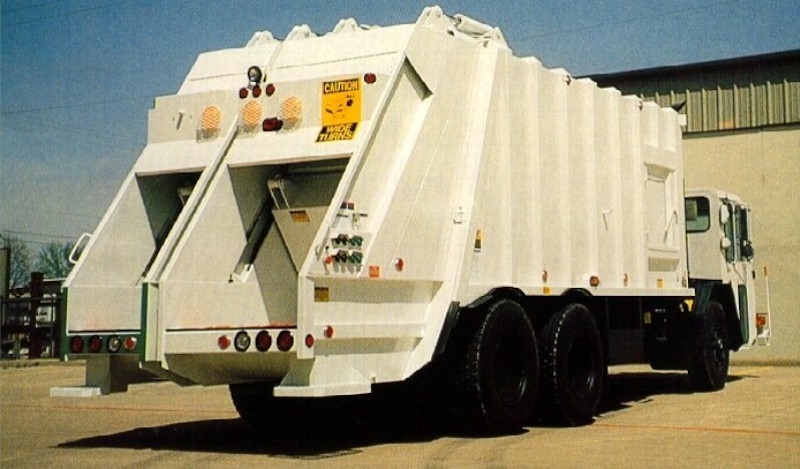

R-90 rear loader with 4-compartments, hinged-hopper type packers

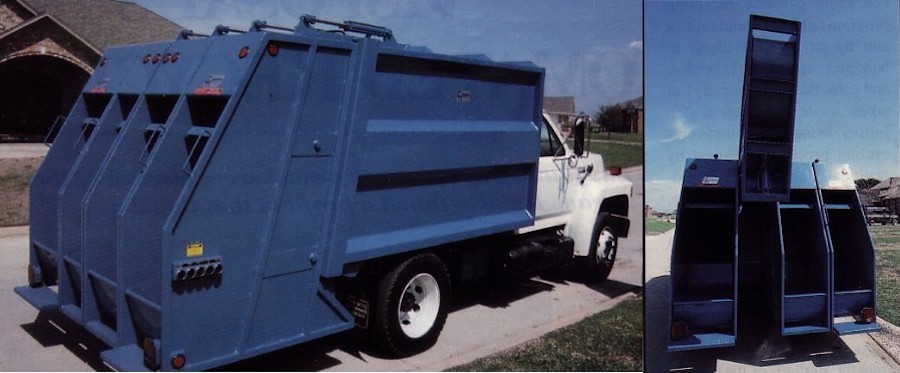

R-90 with 3-way split: slide-sweep in center section, hinged-hoppers at sides



RR-90 with 5-compartment rotary-dump body. This type body was originally developed in Europe in the 1920s



R-90 with 40/60 split and slide-sweep packers

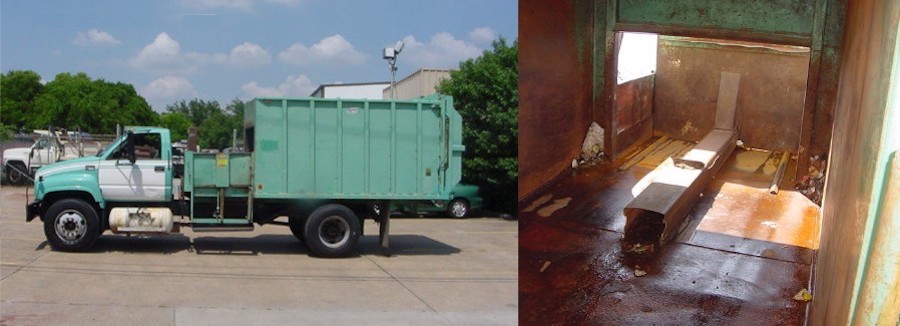

2000 Series manual side loader





8/29/15
© 2015
All Rights Reserved

Logos shown are the trademarks of respective manufacturers
Photos from factory brochures/trade advertisements except as noted
