Magirus-Deutz
Ulm, Germany

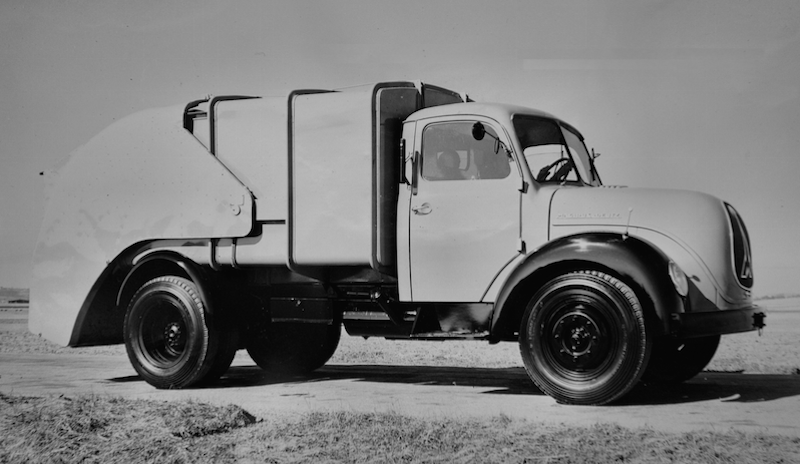

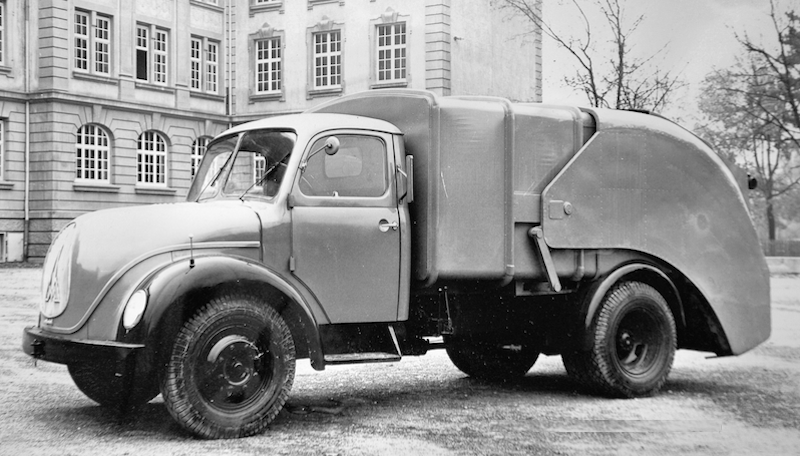

Magirus-Deutz bucket loader circa 1953

    Truck manufacturer Magirus-Deutz fitted many refuse bodies to their chassis during the 1950s, including Streicher, KUKA and Haller, as well as rear loader of their own design starting around 1951. The Magirus-Deutz rear loader featured a hinged bucket, covered with sheetmetal bodywork for dust control. The bucket was periodically rotated inward by a hydraulic cylinder and linkage, which dumped its contents within the main body. An internal hinged partition door kept the refuse within the body from falling back under the bucket, and this door swing open as the tailgate was raised and the body was tipped to unload the contents.

    Improved versions were introduced in the late 1950s, using a packer plate to clean the hopper, much like the Heil Colectomatic. These later "M-series" bodies are believed to have been made with the co-operation of Haller, since the later versions came to be sold under the Haller name. The M-series bodies are documented in the Haller album here at Classic Refuse Trucks.

Special thanks to Michel Ferro for the rare factory photographs shown on this page

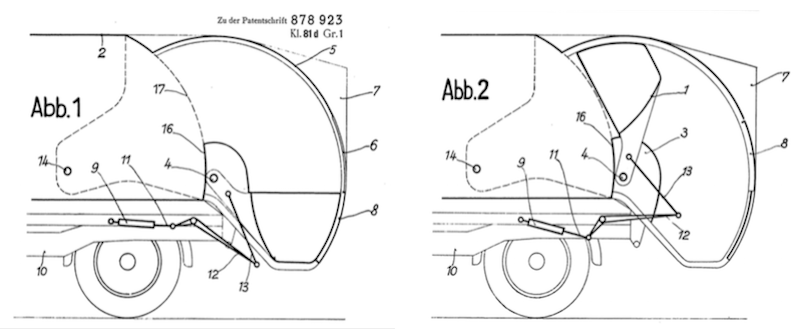

Bucket dumping mechanism from a patent drawing

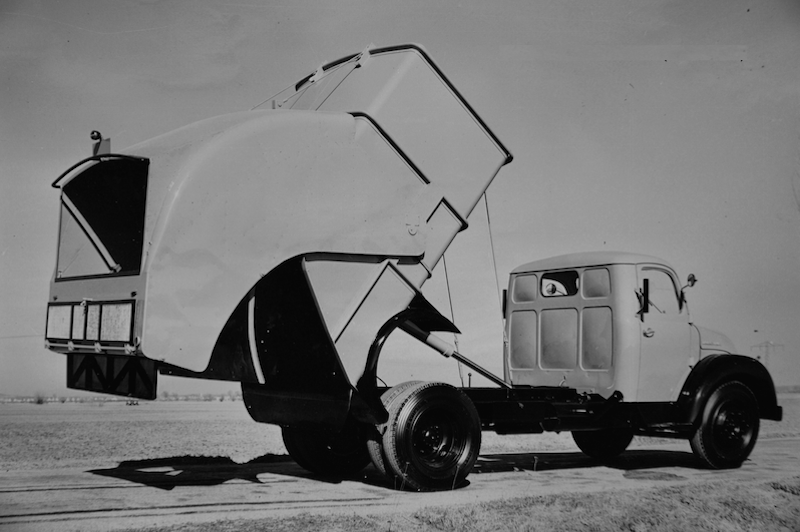

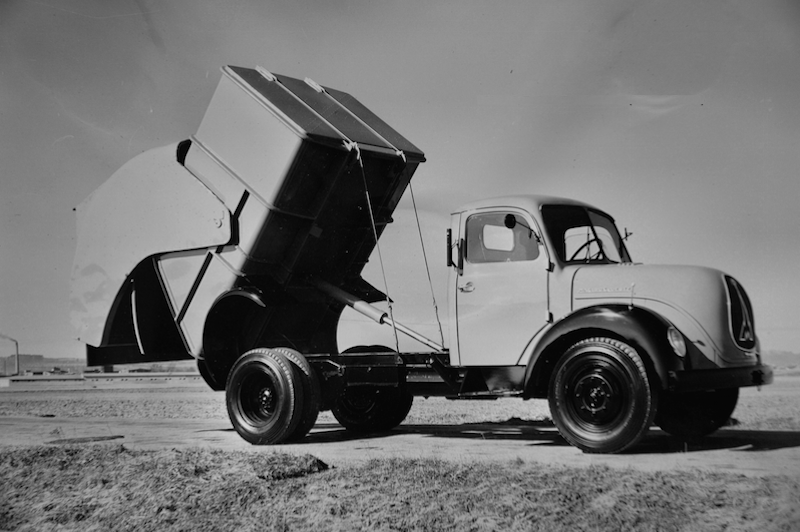

MD rear loader with body raised; tailgate was raised by linkage

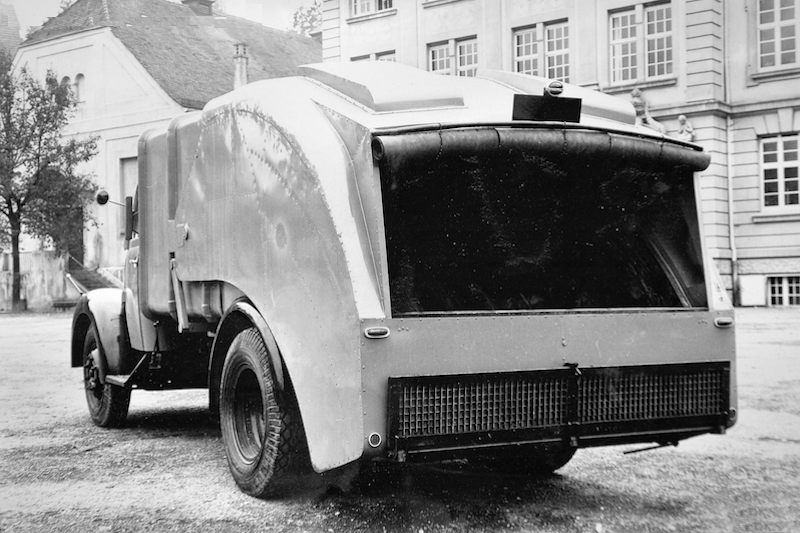

Rear-view showing canvas cover and riding step for crewmen

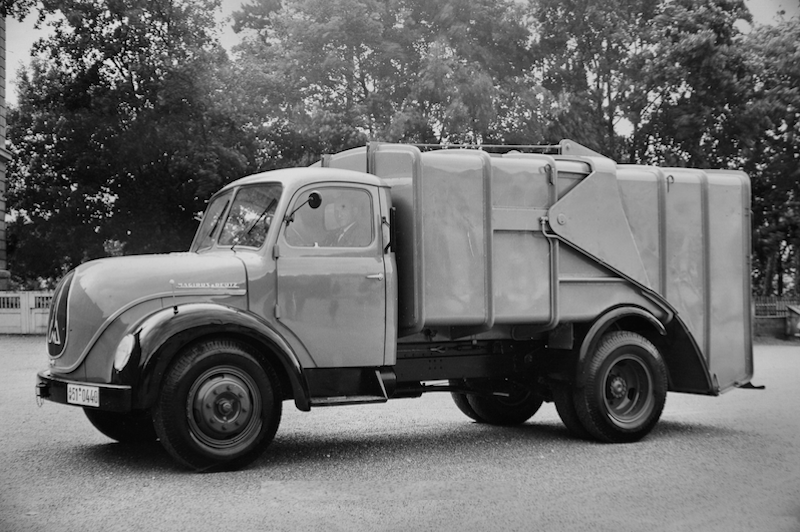

Another version of the MD bucket loader, which had a cable-raised tailgate



Note the fans located above the hopper, most likely for dust control

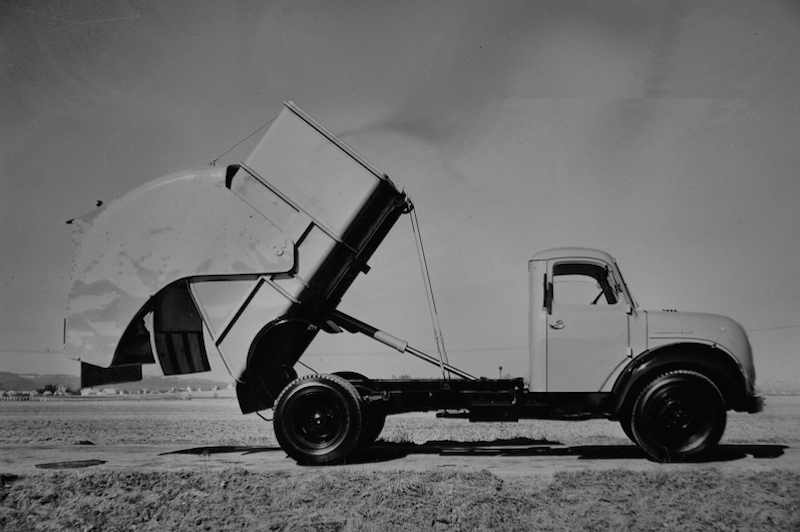

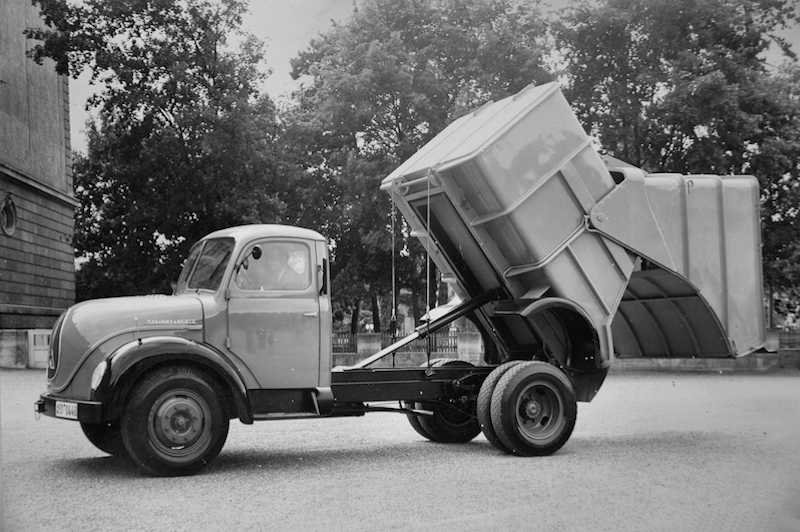

AS body is raised, fixed cables draw open the tailgate



Front view of tailgate cables

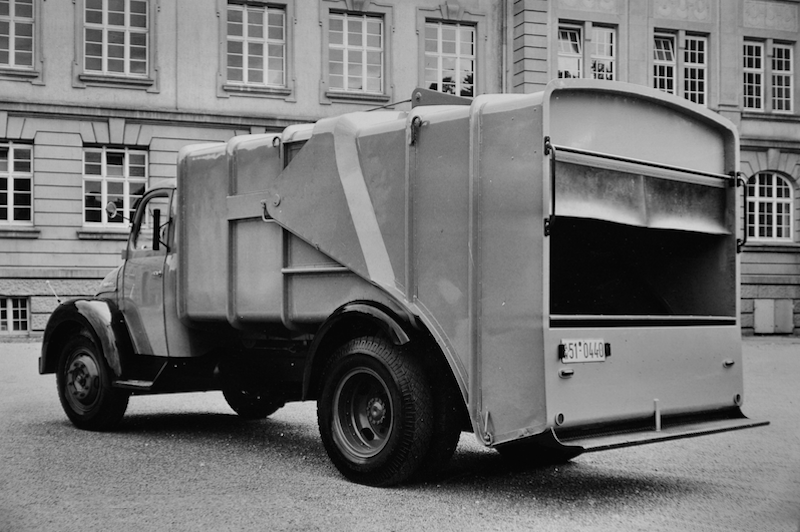

Note the rear partition door is swung open to allow discharge of the load

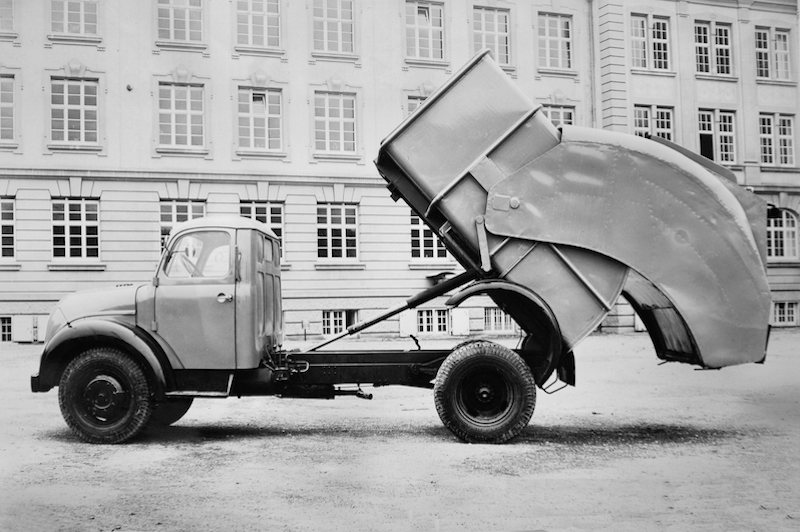

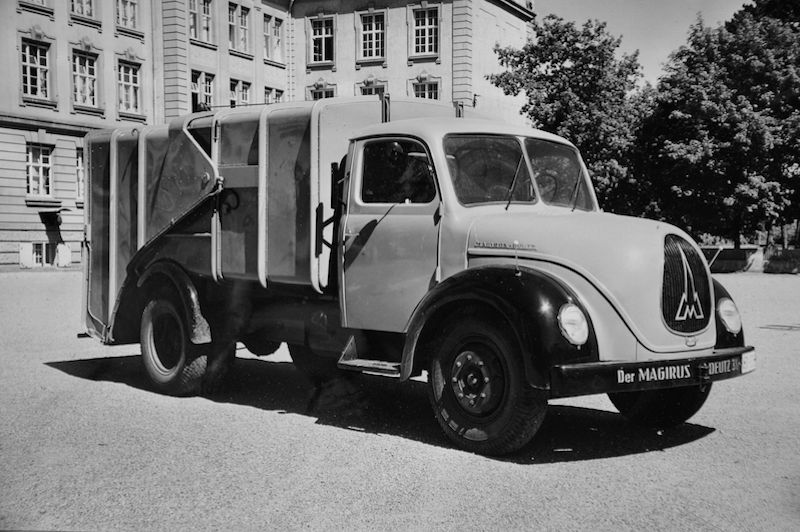

Yet another version from Magirus-Deutz, with a restyled tailgate canopy and bodywork

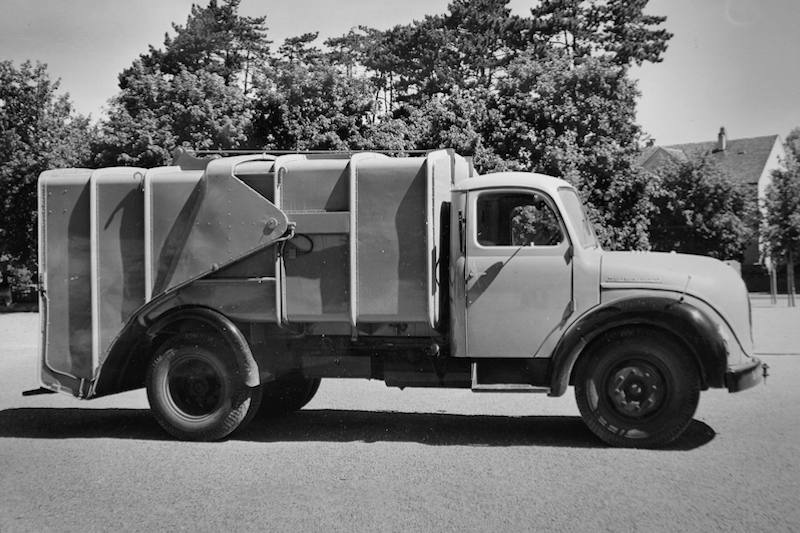

Side view showing cables above roof of body



Driver-side view



This version has a single-stage hoist, and the tailgate partition appears to be fixed



This version may have had changes to the bucket lifting mechanism



SELECTED PATENTS
Patent # Description Inventor Assignee Date
878923 Muellwagen... Herterich, et.al. Klockner-Humboldt-Deutz AG September 14, 1951
